1. Introduction
Electric power transmission is the lifeline of modern civilization. As electricity demand continues to grow, countries around the world are focusing on transmitting large amounts of power over long distances with minimum loss and maximum reliability. High Voltage Alternating Current (HVAC) and High Voltage Direct Current (HVDC) systems are two advanced technologies that make this possible.
In India, both HVAC and HVDC networks play a vital role in transferring electricity from generation centers — such as hydro, thermal, nuclear, and renewable plants — to distant load centers spread across the nation. Understanding how these systems work, their advantages, and their challenges helps us appreciate the technological backbone of the modern power grid.
2. Energy Resources and the Need for Transmission

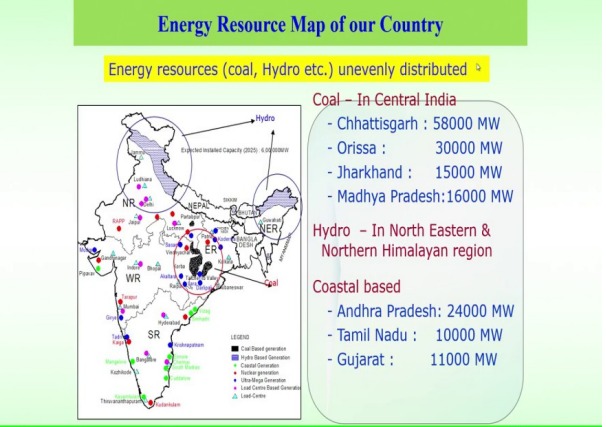

India’s natural energy resources are not uniformly distributed. The northern and northeastern regions possess significant hydroelectric potential, while the eastern and central areas are rich in coal deposits. Coastal belts in Gujarat, Tamil Nadu, and Andhra Pradesh are suitable for thermal and renewable power generation.
Because power generation is concentrated in specific regions, electricity must be transmitted over long distances to reach industrial and residential centers. This uneven distribution of resources created the need for high-capacity, long-distance transmission networks that can efficiently move power from one part of the country to another. Extra High Voltage (EHV) and Ultra High Voltage (UHV) systems are designed precisely for this purpose.
3. Importance of High Voltage Transmission
When electric power is transmitted at high voltage levels, several technical and economic benefits arise. The power transmitted by an overhead AC line can be expressed as: P = V^2 / Z
Where:
- P = Power transmitted
- V = Transmission voltage
- Z = Surge impedance of the line (usually 250–400 Ω)
Using this relation:
- At 220 kV → ≈ 194 MW
- At 400 kV → ≈ 640 MW
- At 765 kV → ≈ 2340 MW
- At 1200 kV → ≈ 5760 MW
This clearly shows that as voltage increases, the amount of power transmitted grows exponentially. A 765-kV line can carry almost four times the power of a 400-kV line, while a 1200-kV line can transmit more than twice the power of a 765-kV system. Hence, going for higher voltage levels results in reduced losses, smaller conductor size, and improved efficiency.
4. Understanding Surge Impedance and SIL
ALSO READ: What Ground Clearance Is and Why It’s Important in Overhead Transmission Lines?
Surge Impedance (Z₀) is the ratio of the amplitudes of voltage and current in a traveling wave moving along a transmission line without reflection. It determines the Surge Impedance Loading (SIL) — the power level where the reactive power generation and absorption in a line balance each other, and the system operates most efficiently.
At SIL, the net reactive power flow is zero. Designing lines to operate near their SIL ensures optimal performance, stability, and reduced voltage fluctuation during heavy or light loads.
5. Advantages of High Voltage AC (HVAC) Transmission
5.1. Easy Voltage Transformation
AC systems make it simple to step up or step down voltages using transformers. This flexibility in voltage conversion simplifies both transmission and distribution.
5.2. Reduced Conductor Size and Losses
At higher voltages, the current for a given power decreases, which reduces the conductor’s cross-sectional area, minimizes I²R losses, and lowers the overall cost of conductors and towers.
5.3. Enhanced System Stability
The steady-state stability limit of a power system is proportional to the square of its voltage. Higher voltage therefore improves the stability margin and enhances system reliability.
5.4. Higher Transmission Efficiency
Reduced current and lower losses result in higher efficiency, which means more power reaches the consumer without the need for additional generation.
6. Limitations of Extra High Voltage AC Systems
While EHV AC transmission offers many benefits, operating above 400 kV introduces challenges:
- Corona Losses:
Ionization of air around conductors leads to energy loss, audible noise, and visible glow. - Radio Interference:
Corona discharges emit electromagnetic noise that interferes with nearby communication systems. - Large Tower Structures:
Higher voltage requires increased phase-to-phase and phase-to-ground clearances, resulting in taller and costlier towers. - Reactive Power Management:
Long AC lines generate and absorb reactive power, requiring additional equipment such as capacitors and reactors.
To overcome these limitations, HVDC technology is preferred for bulk and long-distance transmission.
7. Advantages of HVDC Transmission
7.1. No Skin Effect
In DC systems, current distributes uniformly across the conductor’s cross-section, eliminating the skin effect and associated losses.
7.2. Lower Transmission Losses
HVDC requires only two conductors — positive and negative — instead of three in AC systems. This reduces the overall material requirement and line losses.
7.3. Excellent Voltage Regulation
HVDC lines do not suffer from inductive or capacitive reactance, resulting in minimal voltage drop and superior regulation over long distances.
7.4. No Reactive Power Compensation
Since DC does not involve alternating electric fields, there is no reactive power component, and hence no need for compensation devices.
7.5. Reduced Corona and Radio Interference
Corona losses and radio noise are frequency-dependent. Because DC operates at zero frequency, these effects are significantly lower.
7.6. Lower Insulation Requirements
Switching surges in HVDC are less severe than in AC systems, allowing for reduced insulation levels and lower cost.
7.7. Lower Short-Circuit Currents
Fault currents in HVDC networks are considerably smaller, improving protection and reducing equipment stress.
7.8. Ideal for Long-Distance Power Transfer
For distances beyond 400 km, HVDC systems become more economical and energy-efficient than AC systems.

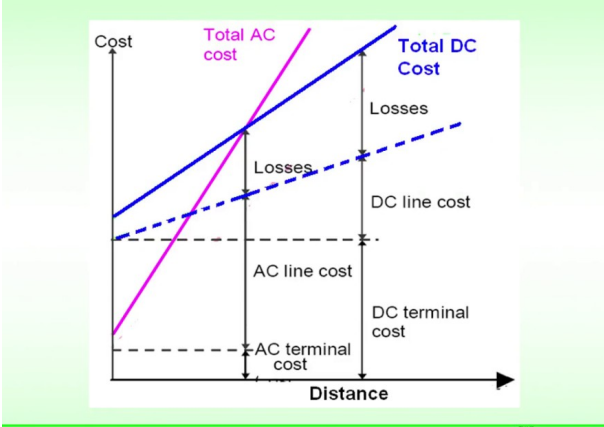

8. Economic Comparison: HVAC vs. HVDC
A cost-versus-distance analysis shows a clear economic crossover point:
- Below 400 km: AC transmission is cheaper due to low converter costs.
- Beyond 400 km: DC transmission becomes more economical because of reduced losses and smaller conductor size.
Thus, HVDC is typically chosen for inter-regional and transnational transmission, whereas HVAC remains suitable for shorter to medium distances.

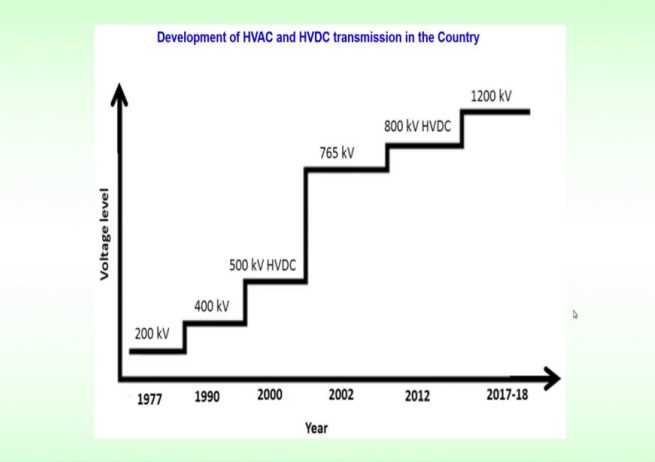

9. Growth of High Voltage Transmission in India
India’s transmission system has evolved rapidly over the decades:
| Period | Key Development |
|---|---|
| 1970s | Introduction of 200-kV AC lines |
| 1980s | Expansion of 400-kV AC network |
| 1990s | Implementation of ±500-kV HVDC projects |
| 1998 | Commissioning of 765-kV AC line (Kishanpur–Moga) |
| 2006 | Adoption of ±800-kV HVDC technology |
| Present | 1200-kV UHVAC experimental line at Bina, Madhya Pradesh |
These milestones highlight India’s progress toward ultra-high-voltage transmission, matching global standards in scale and technology.
10. Standard Transmission Voltages in India
India follows standard voltage levels as per national and international guidelines to ensure uniformity in design and manufacturing:
| Nominal System Voltage (kV) | Maximum Operating Voltage (kV) |
|---|---|
| 132 | 145 |
| 220 | 245 |
| 400 | 420 |
| 765 | 800 |
| 1200 | 1150 |
These values are crucial for equipment design, insulation coordination, and maintaining overall system safety.
11. Evolution of Grid Management in India
Initially, power generation and distribution were localized. By the 1960s, state-level grids emerged, pooling resources within each state. In the 1970s, regional grid systems were introduced, dividing India into five zones — Northern, Western, Eastern, Southern, and North-Eastern.
A major breakthrough came with the Electricity Act of 2003, which promoted private participation and strengthened inter-state connectivity. By December 2013, India achieved a single synchronized national grid, operating at one frequency — known as the “One Nation, One Grid” concept.
Today, India’s grid spans over 3000 km from north to south and nearly 2900 km from west to east, integrating 132-kV, 220-kV, 400-kV, 765-kV AC, and ±800-kV HVDC networks into one of the largest power systems in the world.
12. Factors Affecting Insulation Design at Different Voltage Levels
The type of insulation and design considerations vary with voltage levels:
| Voltage Range | Dominant Design Factor |
|---|---|
| Up to 4 kV | Mechanical clearances |
| 4–33 kV | Corona discharge effects |
| 66–220 kV | Lightning and switching surges |
| Above 400 kV | Pollution and contamination effects |
At voltages higher than 400 kV, pollution and contamination become the main concern. Deposits of dust, salt, and industrial pollutants on insulator surfaces can cause flashovers even at normal operating voltages. Hence, advanced materials, greater creepage distances, and periodic cleaning are essential for reliable operation.
13. Future of UHV Transmission in India
India is advancing toward a future powered by Ultra High Voltage (UHV) transmission systems — both 1200-kV AC and ±800-kV DC. The reasons are clear:
- Enables bulk power transfer across thousands of kilometers.
- Reduces right-of-way (ROW) requirements per megawatt transmitted.
- Minimizes line losses and improves voltage stability.
- Facilitates integration of renewable energy sources.
- Strengthens interregional and international grid interconnections.
The ongoing experiments at the Bina UHV test station mark a major step toward deploying full-scale 1200-kV systems, positioning India among the leaders in UHV transmission technology.
14. Environmental and Operational Benefits
- Lower Land Use:
Fewer lines are needed for the same power transfer, reducing environmental impact. - Improved Reliability:
Advanced control systems in HVDC technology allow real-time regulation of power flow and support grid stability. - Better Integration of Renewables:
HVDC links make it easier to connect offshore wind farms, solar parks, and remote hydro stations to the national grid. - Reduced Losses and Carbon Footprint:
Efficient transmission minimizes wasted energy, contributing to national sustainability goals.
15. Conclusion
The transformation of power transmission from conventional AC systems to advanced UHVAC and HVDC technologies represents a major step in India’s energy journey. High voltage systems not only improve transmission efficiency but also enhance grid stability, reduce environmental impact, and support renewable energy integration.
While HVAC remains ideal for regional and medium-distance transmission, HVDC is the technology of choice for long-distance, interregional, and offshore power transfer. Together, they create a hybrid network that ensures energy security, reliability, and sustainability for future generations.
As India continues to expand its renewable capacity and strengthen its national grid, the strategic combination of HVAC and HVDC technologies will remain at the heart of a resilient, smart, and sustainable power system.
